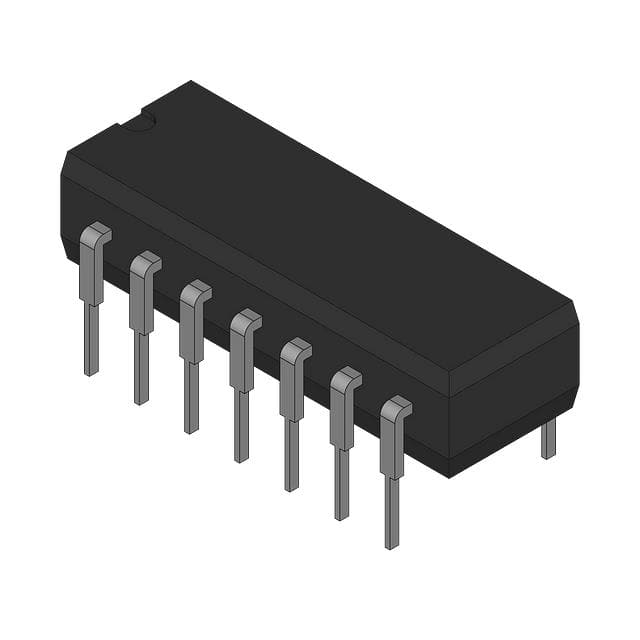

LT1020IN#PBF Image Image may be representation.
See specs for product details.
LT1020IN#PBFLinear Technology IC REG LIN POS ADJ 125MA 14DIP
Part NumberLT1020IN#PBF
Package14-DIP (0.300", 7.62mm)
ManufacturerLinear Technology / Analog Devices
RoHs Status
Manufacturer Part NumberLinear Technology-LT1020IN#PBF
DescriptionIC REG LIN POS ADJ 125MA 14DIP
In stock2744
Data sheet
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 2744 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - LT1020IN#PBF
  • LT1020IN#PBF Tech Specifications
    Linear Technology - LT1020IN#PBF technical specifications, attributes, parameters and parts with similar specifications to Linear Technology - LT1020IN#PBF
    Manufacturer Linear Technology / Analog Devices
    Voltage Dropout (Max) 0.85V @ 125mA
    Voltage - Output (Min/Fixed) 2.5V
    Voltage - Output (Max) 35.15V
    Voltage - Input (Max) 36V
    Supplier Device Package 14-PDIP
    Series -
    Protection Features Over Current, Over Temperature, Short Circuit
    Package / Case 14-DIP (0.300", 7.62mm)
    Package Bulk
    PSRR -
    Output Type Adjustable
    Output Configuration Positive
    Operating Temperature 0°C ~ 100°C
    Number of Regulators 1
    Mounting Type Through Hole
    Current - Supply (Max) 20 mA
    Current - Quiescent (Iq) 95 µA
    Current - Output 125mA
    Control Features Current Limit, Enable
  • TheLT1020IN#PBFis a Integrated Circuits (ICs) component, full developed and mass-produced by Linear Technology manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is IC REG LIN POS ADJ 125MA 14DIP and it falls under the category of PMIC - Voltage Regulators - Linear, with Manufacturer of Linear Technology / Analog Devices and Voltage Dropout (Max) of 0.85V @ 125mA and Voltage - Output (Min/Fixed) of 2.5V. Efficient purchasing through Linear-Stock.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for LT1020IN#PBF or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute LT1020IN#PBF LT1033CP#PBF LT1033CT LT1034CZ-2.5#PBF
Part Number LT1020IN#PBF LT1033CP#PBF LT1033CT LT1034CZ-2.5#PBF
Manufacturer Linear Technology Linear Technology Linear Technology Linear Technology
Mounting Type Through Hole Through Hole Through Hole Through Hole
PSRR - 77dB (120Hz) 77dB ~ 60dB (120Hz) -
Current - Supply (Max) 20 mA 5 mA - -
Voltage Dropout (Max) 0.85V @ 125mA - - -
Voltage - Output (Min/Fixed) 2.5V -1.2V -1.2V 2.5V, 7V
Operating Temperature 0°C ~ 100°C 0°C ~ 125°C 0°C ~ 125°C (TJ) 0°C ~ 70°C (TA)
Voltage - Input (Max) 36V - 35V -
Supplier Device Package 14-PDIP TO-3P TO-220-3 TO-92-3
Current - Output 125mA 3A 3A 20 mA
Output Type Adjustable Adjustable Adjustable Fixed
Series - - - -
Protection Features Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Over Voltage, Short Circuit Over Current, Over Temperature -
Current - Quiescent (Iq) 95 µA 3 mA 5 mA -
Control Features Current Limit, Enable - - -
Package Bulk Bulk Bulk Bulk
Package / Case 14-DIP (0.300", 7.62mm) TO-3P-3, SC-65-3 TO-220-3 TO-226-3, TO-92-3 (TO-226AA)
Number of Regulators 1 1 1 -
Output Configuration Positive Negative Negative -
Voltage - Output (Max) 35.15V -32V -32V -
Payment Support The payment method can be chosen from the methods shown below: Wire Transfer (T/T, Bank Transfer), Western Union, Credit card, PayPal.
Certifications & Memberships We strictly controls the quality of products, environment and services.Through the ISO certification of the third party. View More >

Brand introduction

Linear Technology Linear Technology Linear Technology Corporation designs, manufactures and markets a broad line of standard high performance integrated circuits. Applications for the Company's products include telecommunications, cellular telephones, networking products, notebook and ...
- Linear Technology Corporation designs, manufactures and markets a broad line of standard high performance integrated circuits. Applications for the Company's products include telecommunications, cellular telephones, networking products, notebook and desktop computers, video/multimedia, industrial instrumentation, automotive electronics, factory automation, process control, and military and space systems. The Company's principal product categories include amplifiers, battery management, data converters, high frequency, interface, voltage regulators and voltage references.
Analog Devices, Inc. acquires Linear Technology: With the combined 80 years of technology excellence, ADI becomes "The Premier Global Analog Technology Company". This new comprehensive portfolio gives customers an edge by market leading position, innovation, and commitment. More Information
